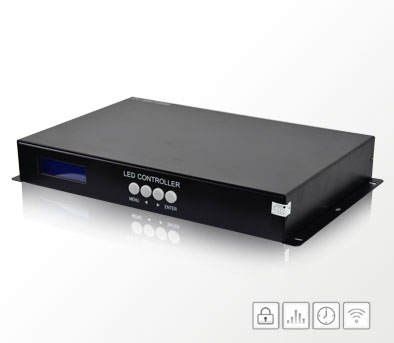

Item:EN-508-R/T
Size:170L×115W×50H mm
Input port:RJ45
Output channel:8channels
Output signal: R:RS-485 T: TTL
Communication protocol: SW ethernet protocol
Max power:5W
Transmission distance:100m
Working temperature:-15℃~60℃
Cover color:Silver
Working voltage:DC7.5V
Power plug: Power adapter
Product Description

◆ Feature

-- PC control system supports multi-links of controllers and it can drive 540000 pixel.

-- Under SD card control system, its capacity: 65536 pixel. Only need to insert the SD card to the 1st controller.

-- Data transmission follows the optimized network protocol. 100M switches can be used to connect the data.

-- Distance between controllers can reach 100m.

-- Set IP address through the button of controller.



◆ Engineering Wiring Diagram

 ---PC Connection Diagram






---SD Card Connection Diagram






 ◆ Product Model
