Intelligent Control System
Ethernet Control Series

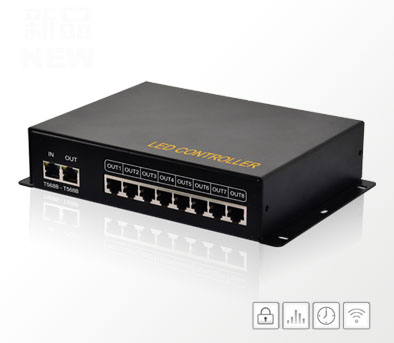

EN-408·Main Controller (Series)

Power Input:AC100~240V
Data Input:RJ45, Ethernet
Driver Output:RJ45(Rs485 + TTL)×8
Capacity: 10,240 Pixels(1280×8)
Max power:5W
Working temperature:-15℃~60℃
Cover material:Metal box
Weight: 1000g (N.W. 850g)
Size:220L×142W×45H mm
Product Description



◆ Features

· Ethernet PC control system is composed of integrated master controller and main controller. When fiber transceiver is connected, the distance between controllers can reach 10km.

· Integrated master controller supports PC control, SD card control, time control, GPS sync and Cloud remote control.





◆ Applications

   ● Secure Solution

    · System: Select MP-200/PC/MP-300 as master controller to work with SN-500; main controller can be EN-508/EN-408.

    · When MP-200/PC is turned off or out of order, SN-500 will read the effect in SD card automatically.

    · When SN-500 is used as SD card controller with defective SD card, user can connect MP-200/PC to keep working.







   ● Synchronization Solution

     · System: Master controller MP-200/SN-500/MP-300 main controller EN-508/EN-408.

     · Master controller connects with external GPS satellite synchronizer to realize lighting synchronization and linkage among a group of buildings.







   ● Cloud Remote Control Solution

    · System: Master controller MP-200/MP-300, main controller EN-508

    · When master controller connects to internet, visitor can scan the code to login cloud server and control single/multiple master controller(s), include effect updating, mode switch and speed /brightness adjustment.







   ● WiFi Time Control Solution

    · System: Master controller MP-200/SN-500, main controller EN-508/EN-408.

    · When user opens APP and connects master controller WiFi, effect, speed and brightness can be controlled by APP. As well as setting time control list and selecting “APP time control list” or “SD card list” on APP.
