Item:EP-100
Size:170L×115W×50H mm
Input channel:RJ45
Output signal: RS-485
Communication protocol:SW Ethernet protocol
Max power:3W
Transmission distance:100m
Working temperature:-15℃~60℃
Cover color:Black
Working voltage:AC220V
Power plug:National standard (or by customer's request)
Product Description

◆ Feature

· Flexible usage: Master controllers can be interchanged freely and auto-addressing in the cascade connection.

· Good synchronous performance: The transmission delay between the adjacent master controllers is within 1ms. Even 255pcs master controllers connected in a cascade way, the transmission delay won't be detected by eyes. The image is holistic.

· High capacity: Each controller can drive more than ten thousand pixels. System support cascade Multi-link. One network card can drive ten thousand pixels at most.

· Long transmission distance: Based on SW Ethernet Protocol, distance between master controllers can be 100m.If the distance between two controllers has exceeded 100m,please add one or several signal extenders-

  EP100. It supports fiber Module transmission signal. The distance can reach 10KM.

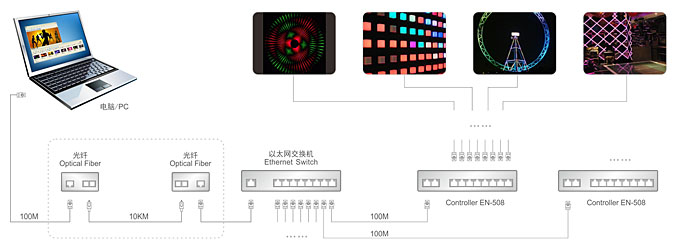

◆ Engineering Wiring Diagram









◆ Product Model
