2-Wire In Cascade Connection



Grey level:256 scales

Speed:1T high speed MCU

RAM:256byte

Working voltage:4.5V~5.5V

Refresh rate:>200Hz

Working temperature:-40°~+85°

Chip packaging:DIP-16、SOP-16

UART:Enhanced,supporting frame error detection,hardware address identification












◆ Feature

--- Import chip,the quality is credibility and stabilization

--- Applied to 2-wire digital tube,cascade ability,amplifying signal

--- For long distance transmission has a good performance,distance can reach 10 meters between two lightings

--- J70 is optimized version which use few components,compatibility with J69

--- Each port of controller can drive no less than 1000 meter

--- Can be internal or external control.With lots of built-in effects,such as scanning,chasing etc.

--- Good encryption,unique code for factory

--- Offering standard 2-wire PCB drawing for free





◆ Schematic Diagram

Advantage1 : Long transmission distance, stable performance.







Advantage2 : Each port of the master controller can drive no less than 1000meter. Application: Bridge lighting and the outline

of building.






Advantage3 : J69/J70 has built in ample effects. Even if the master controller or one of the tube has problem, the other tubes can still run its build-in

effect.

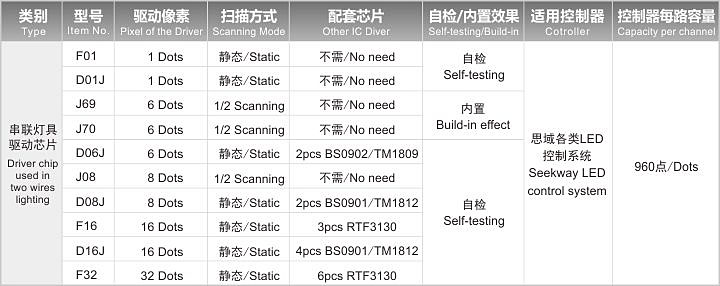

◆ Product Model
