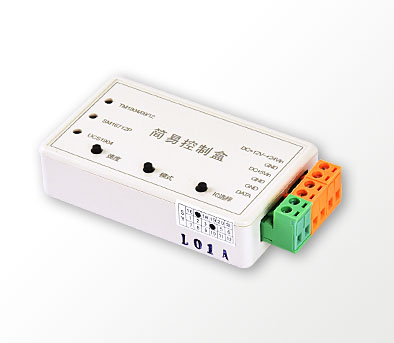

Item:M-SY-304-N
Size: 127L×64W×24H mm
Output channel: 4 Channels
Output signal: TTL
Output port: Signal terminal
Max power: 3W
Working temperature: -15℃~60℃
SD Card: 128M
Cover color: Silver
Working voltage: AC/DC 12, 24V
Multi-link port: ACS Sync
Synchronization mode: Limitless
Multi-Controller Sync: 50 sets
Power plug: Signal terminal
Product Description

 Feature

-- Starting up at the same time,communication synchronous

-- Equipped with Seekway MAP Tools software,which use to edit the signal layout

-- SW-301、B-SW-301 with 8 channels,every channel copy the same effect.Applied to bridge and the outline of building lighting

-- M-SY-304,small volume,large capacity,output 4 channels different data,capacity up to 4096 points





 Product Model



4TTL:Use 4 channels to output different data
