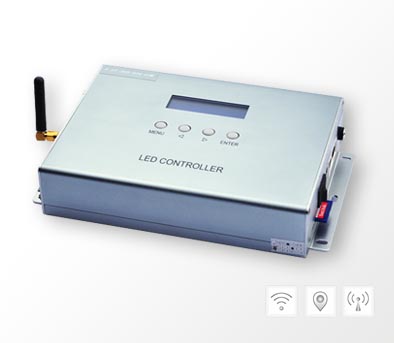

Item:K-SY-308-R/T/D
Size: 165L×120W×40H mm
Output channel: 8 channels
Output signal: R: RS-485 T:TTL
Output port: Signal terminal
Max power: 3W
Working temperature: -15℃~60℃
SD Card: 4G
Cover color: Black
Working voltage: AC220V
Multi-link interface: RJ45
Synchronization mode: ACS or Multi-link Sync
Multi-Controller Sync: ≤255 set
Power plug: National standard,Kinds of standard plug can be selected
Product Description

◆ Feature

-- Synchronization mode,ACS or Muti-link Sync is optional

--  Support encryption,audio control,voice control,DMX512,remote control and other additional functions

--  Equipped with Seekway MAP Tools software,which use to edit the signal layout

-- If use fiber optic modules,transmission distance between two cascade controller can reach 10 kilometers.





◆ Engineering Wiring Diagram

· AC Synchronous





·Cascade Synchronous








◆ Product Model
