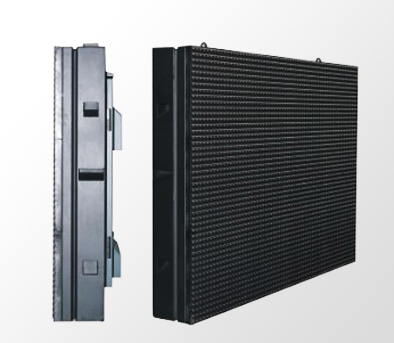

P10 Full Color LED Display (Outdoor) Features:

• High and adjustable brightness, possible to play all day.
• Flexible to show different colorful contents such as text, image, animation and video.
• Special shot and animation production, recording and superposition.
• Modular structure is convenient for installation and maintenance.
• Accessibility of exchanging resources through the internet.
• Guarantee of structure and material, nice appearance, exquisite and colorful
• Flexible play mode due to reliable hardware and strong compatible software.
Product Description



◆  Main Parameters

·Application environment: Outdoors

·Unit: m2

·Pitch: 10mm

·Pixel density: 10,000pixels/m2

·Size: 4.16x3.2m=13.312m2

·Resolution: 416x320pixels

·Display mode: Real map

·Brightness: ≥ 7,000 Nits

·Best visual distance: 10-130m

·Best visual angle: H ≥110o, V ≥55o

·Contrast ratio: ≥3,000 : 1

·Working environment temperature: In or beyond the range of -10- 45℃

·Working environment humidity: In or beyond the range of 10-90%RH

·IP grade: Front IP65

·Input power frequency: 50HZ

·Cycle life: ≥100,000 hours



◆ Display Module Parameters

·LED SPEC: DIP346

·Pixel configuration: 1R1G1B

·LED brand: Epistar/Mulinsen

·Size: 320mm×160mm

·Resolution: Length 32pixels, height 16 pixels

·Drive mode: Constant current 1/4 scan

·Drive voltage: DC5V

·Power consumption: ≤15W

·Maintenance: Afterwards



◆ Display Box Parameters

·Input power frequency: 50HZ

·Installation mode: Fixed installation (maintain afterwards)

·Signal interface: Control distance < 100M  network cable
