Innovative LED Product
Transparent LED screen
Transparent LED Screen P31-8D/12D

Display module : P31-8D/12D
Size/module(mm) : 2000H x 340W / 2500H x 370W
Pixel/module : 84 x 12 / 64 x 8
Pitch : 31mm
Max Power : 154W / 302W
Average Power : 77W / 151W
Light transmittance : >90%
Brightness : 1400cd/m²
LED type : SMD3528, 3 in 1
Ambient temperature : -10°C ~ 50°C
Product Description

Transparent LED Screen: P31-8D/12D



Speicification

Display module P31-8D/12D
Size/module(mm) 2000H x 340W / 2500H x 370W
Pixel/module 84 x 12 / 64 x 8
Pitch 31mm
Max Power 154W / 302W
Average Power 77W / 151W
Light transmittance >90%
Brightness 1400cd/m²
LED type SMD3528, 3 in 1
Ambient temperature -10°C ~ 50°C

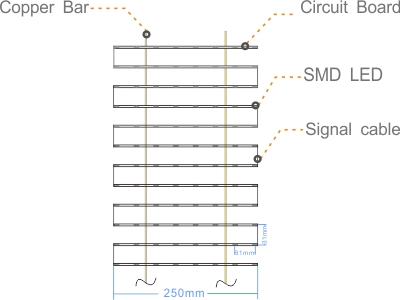

Modular









Wall-mounted Installation

The power supply and SD card controller are placed externally. The LED screen is installed against the glass by the Top Fixed Mount.



  • Install the underframe of fixed mount.
  • Install the LED screen to the fixed mount.
  • Connect the screen to SMPS and controller.
  • Install the cover of fixed mount.

                .jpg    .jpg









Independent hanging Installation

1) Hang up the LED screen with 2pcs Acrylic cover

  • Hang up the LED screen.
  • Install 2pcs Acrylic cover in the front side and back side of the screen.



 .jpg







Effect

  • More than 30 kinds of 3D animation have been programmed.
  • English alphabet input, picture &  video record can be processed by the software.
  • With the SD card controller, effect can display manually or automatically .






◆ Video

       [Download the video]
