Innovative LED Product
LED Lighting Products

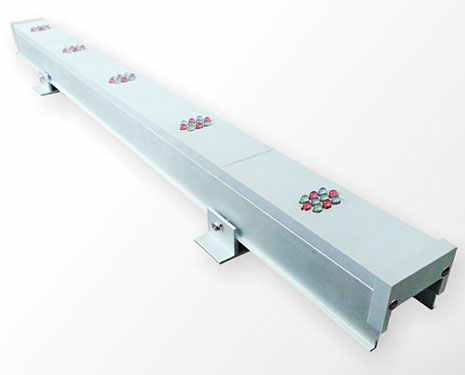

Product Description



Specification

Item No.:HS 08

Size:40×40X1000 mm

 Pixel:10 Pixel

LED type:Straw hat LED

 LED qty:4R+3G+3B

 Working Voltage: DC12V

Rated power:8W

Working temperature:-20℃~55℃

LED Brand: Cree

Luminous flux: red 1500mcd,blue1100mcd,green2800mcd

IP grade: IP65



Feature

1.The tube with silicon inside can be waterproof.

2. Strip has self-testing effect.

3. The IC use single chip solution and it has a good signal transmission.

The distance between two strips can reach 10m.

4.The cover uses high quality Aluminum alloy. Through antistatic

oxidation treatment, constant temperature curing, surface polished

and wire drawing processing, the strip has a high performance.

Cables go from the bottom. Strips can be closely installed together,

without any gap.

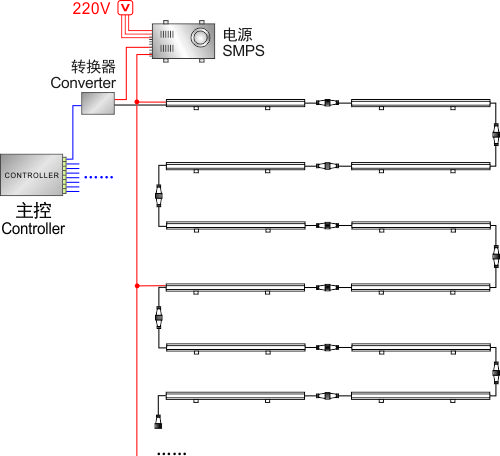

Wiring Diagram
