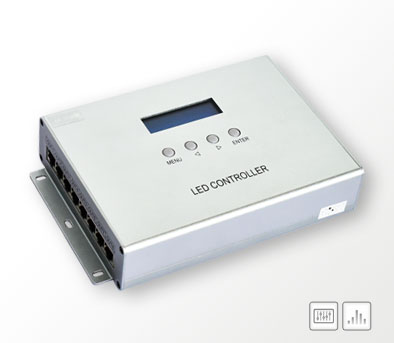

AN-508 · Artnet-DMX Master Controller

Input signal:Artnet
Output signal:DMX512
DMX channel:4096(8×512 channel)
Input port:RJ45×1
Output port:RJ45×8
Max power:5W
Working temperature:-15℃~60℃
Cover material: Aluminum alloy
Working voltage:DC7.5V
Power plug:Power adapter
Weight: 1000g(N.W.850g)
Size:220L×142W×45H mm
Product Description

◆ Feature

  · Following standard Artnet protocol

  · Adopting high speed 32-bit ARM processor

  · Convert the network packet of Artnet protocol to standard DMX512 data

  · Support all Artnet compatible DMX software, such as Madrix, FreeStyler etc.





◆ Cascade Connection Diagram

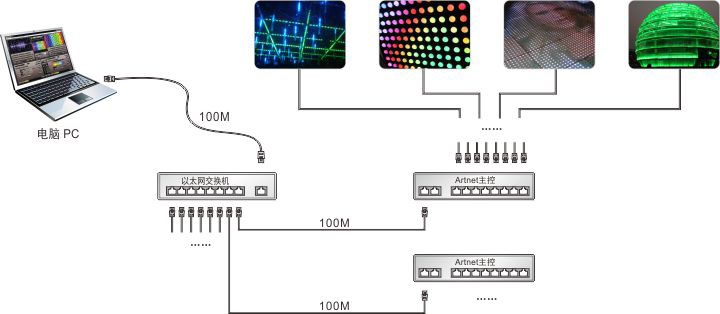

◆ Parallel Connection Diagram
