Intelligent Control System
DMX Driver Series

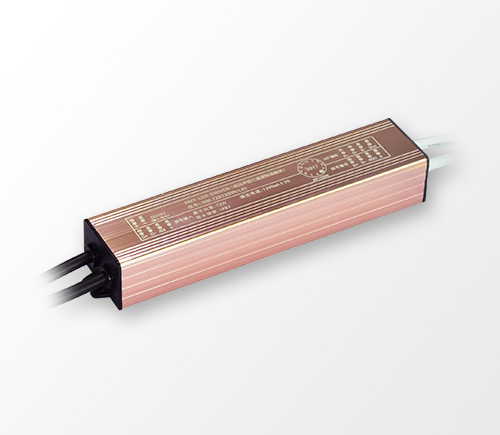

Model:WM-72B1200S

Type:Constant Current DMX Driver

Brevity Code:M72S

Output Power:72W

Input Voltage:DC24V

Output Current:1200mA×3CH

Transmission Mode:RS485

Addressing Mode:Automatic

Size(mm):178L×37W×28H
Product Description



 Overview

· Apply to high-power lighting fixtures such as washer light, flood light and etc.

· Standard DMX512 protocol, 3 channels in each module, series connection and address automatically.

· Connect external Seekway controller to achieve different full color effects.

· Switch automatically between external control mode and built-in 7-color gradient.

· DMX512 console is compatible, can use with other DMX512.

· Gamma dimming, realize smooth color and grayscale change without shake.









 Connection Diagram
